Canton Fair Hot Selling Cement Feeder, Pneumatic Cement Conveyor to Deliver Cement to Silo

Canton Fair Hot Sale Cement Feeder, Pneumatic Cement Conveyor Conveying Cement Into SilosFOCUS pneumatic cement charger (cement horizontal feeder or cement conveyor) is an uniquely structured pneumatic conveying equipment, which uses fluidized pressure delivery technology.This pneumatic cement conveyor is widely applic

Featured Products

Canton Fair Hot Sale Cement Feeder, Pneumatic Cement Conveyor Conveying Cement Into Silos


FOCUS pneumatic cement charger (cement horizontal feeder or cement conveyor) is an uniquely structured pneumatic conveying equipment, which uses fluidized pressure delivery technology.

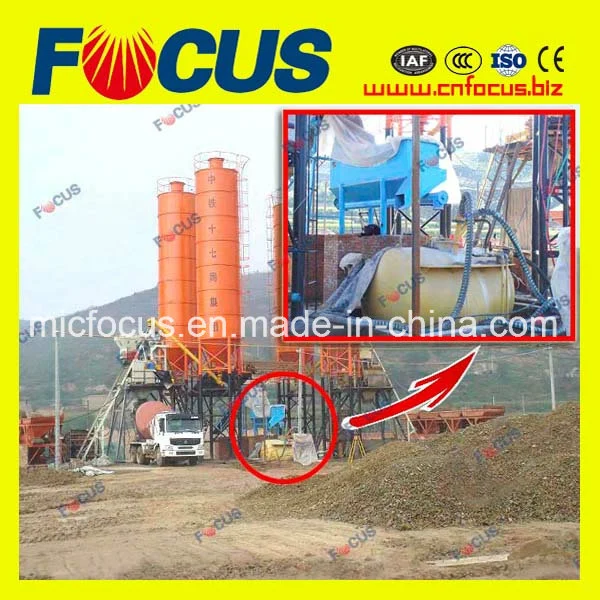

This pneumatic cement conveyor is widely applicable in remote construction sites (concrete batching plant) where bulk cement carrier(truck) is not reachable, whereas bulk cement or bag cement are much available.

Advantages of Focus Pneumatic Cement Charger:
1.ISO & CE certified;
2.high quality with 12 months warranty;
3.used in concrete batching plants.
Canton Fair Hot Sale Cement Feeder, Pneumatic Cement Conveyor Conveying Cement Into Silos

Why would our clients choose FOCUS Pneumatic Cement Charger?
∑ It is pneumatic powder conveying equipment with advanced structure, adopting fluidized pressure delivery technology and unique fluidized bed design;
∑ Applicable to transport cement, grain, coal-ash, lime powder, barite, powder resin and other non-sticky or granular materials, high blow-off efficiency;
∑ The discharging point is adapted for alternating with bulk cement carrier(truck carrier), main components and spare parts are interchangeable between those two kinds of equipment in a concrete mixing plant;
∑ Large capacity, high utilization, convenient installation and operation, light and compact designed, very popular in concrete batching plants for feeding powder materials (cement, fly-ash etc.) into cement silos.
Canton Fair Hot Sale Cement Feeder, Pneumatic Cement Conveyor Conveying Cement Into Silos

Canton Fair Hot Sale Cement Feeder, Pneumatic Cement Conveyor Conveying Cement Into Silos
Parameters of FOCUS Pneumatic Cement Charger:
ModelWG5WG8
Tank volume(m³)58
Power(kw)18.518.5
Blow-off efficiency(t/min)>1.2>1.2
Remain rate(%)<0.4<0.4
Operating pressure(mpa)0.190.19
Rated transmission capacity(kg/h)7090
Transport distance(vertical)
(meter)
>50>50
Power source380v, 50hz, 3 phase
Weight(kg)16001800
Overall dimension
L*W*H (mm)
2600*2000*25003200*2300*2630
Pneumatic source
(air compressor)
Compressor modelWB5.4/2WB5.4/2
Discharge capacity(m³/min)5.26
Pressure rating(mpa)0.20.2
Air supply weight(kg)500500
Air supply dimension
L*W*H (mm)
1300*714*9161300*714*916
MotorY180M-4-B3Y180M-4-B3
Canton Fair Hot Sale Cement Feeder, Pneumatic Cement Conveyor Conveying Cement Into Silos
Canton Fair Hot Sale Cement Feeder, Pneumatic Cement Conveyor Conveying Cement Into Silos

Thanks for visiting, by the time you are paying attention to us, our Pneumatic Cement Chargers are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visit us @ micfocus.en.made-in-china.com
