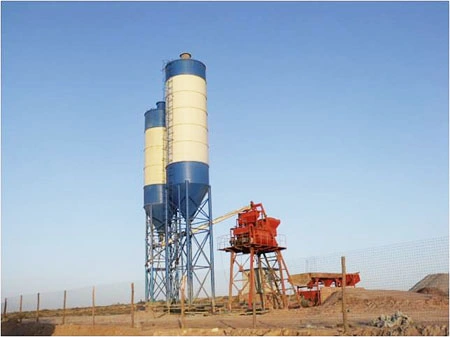

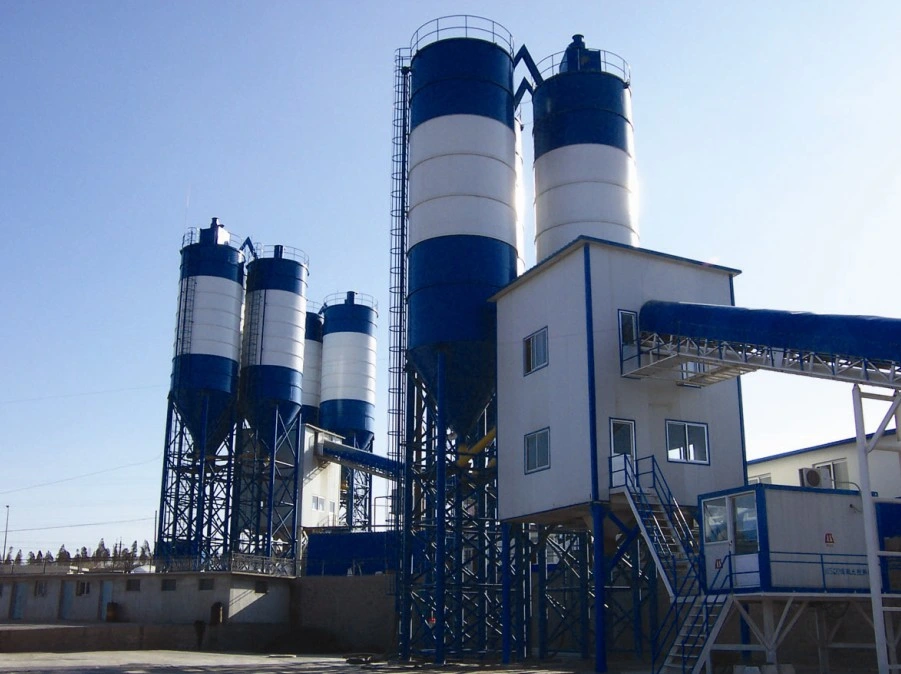

60m³/h (HZS60) competitive price concrete batching plant

The HZS/HLS series of concrete mixing plants/towers (HZS/HLS40-180) , on the basis of bringing in the world\'s frontier technologies, combining the advantages and technologies of the sophisticated&nbs

Featured Products

The HZS/HLS series of concrete mixing plants/towers (HZS/HLS40-180) , on the basis of bringing in the world's frontier technologies, combining the advantages and technologies of the sophisticated domestic and foreign machines that have emerged in recent years, and taking advantage of the company's experience in manufacturing concrete mixing equipment for many years. Having reached the national standards, this series of products have passed the test by the NationalBuilding and City Construction Machinery Quality Supervision and Testing Center of China. Besides, products of this series have alsopassed the sci-tech achievement appraisal carried out by the National Science and Technology Commission of China and organized by Shandong Provincial Department of Science and Technology. According to their appraisal, this series of products are "the only products in the same field that have reached the advanced domestic level in general index and attained the advanced world level in such aspects as productivity, noise control, operation and environmental production". The HZS180 concrete mixing plant in this series was appraised as a new key product of China in 2005.
Main Technical Parameters

ModelHZS/HLS60HZS/HLS90HZS/HLS120HZS/HLS180HZS/HLS240
Theoretical Production
(m3/h)
6090120180240
Main MixerJS1000JS1500JS2000JS3000JS4000
Measuring Scope & PrecisionStone(kg)2000±2%2500±2%3000±2%4000±2%5000±2%
Cobble(kg)2000±2%2500±2%3000±2%4000±2%5000±2%
Cement(kg)600±1%900±1%1200±1%1800±1%2400±1%
Mingled materials(kg)300±1%500±1%600±1%900±1%1200±1%
Water(kg)300±1%400±1%500±1%800±1%1000±1%
Additives(kg)30±1%30±1%50±1%80±1%100±1%
Batching UnitThe number and capacity of batching bins as well as their installation forms can be regulated according to customers' demands.
Powder SiloThe capacity and number of powder silos as well as the accessories vary with customers' demands.
General Power (kw)80105125175220
Discharging Height(m)3.83.83.83.83.8

 Main Technical Parameters
ModelHZS40HZS50HZS75HZS100HZS150HZS200
Theoretical Production
(m3/h)
405075100150200
Main MixerJS750JS1000JS1500JS2000JS3000JS4000
Measuring Scope & PrecisionStone(kg)2000±2%2500±2%3500±2%4500±2%6500±2%9000±2%
Cobble(kg)600±1%800±1%900±1%1200±1%1800±1%2400±1%
Cement(kg)600±1%800±1%500±1%600±1%900±1%1200±1%
Mingled materials(kg)200±1%300±1%400±1%500±1%800±1%1000±1%
Water(kg)20±1%30±1%30±1%50±1%80±1%100±1%
Batching UnitPL1200PL1600PL2400PL3200PL4800PL6400
Powder SiloThe capacity and number of powder silos as well as the accessories vary with customers' demands.
General Power (kw)6580105125175220
Discharging Height(m)2.8,3.82.8,3.82.8,3.82.8,3.82.8,3.82.8,3.8
